【研发定制】4G 5G 随身wifi

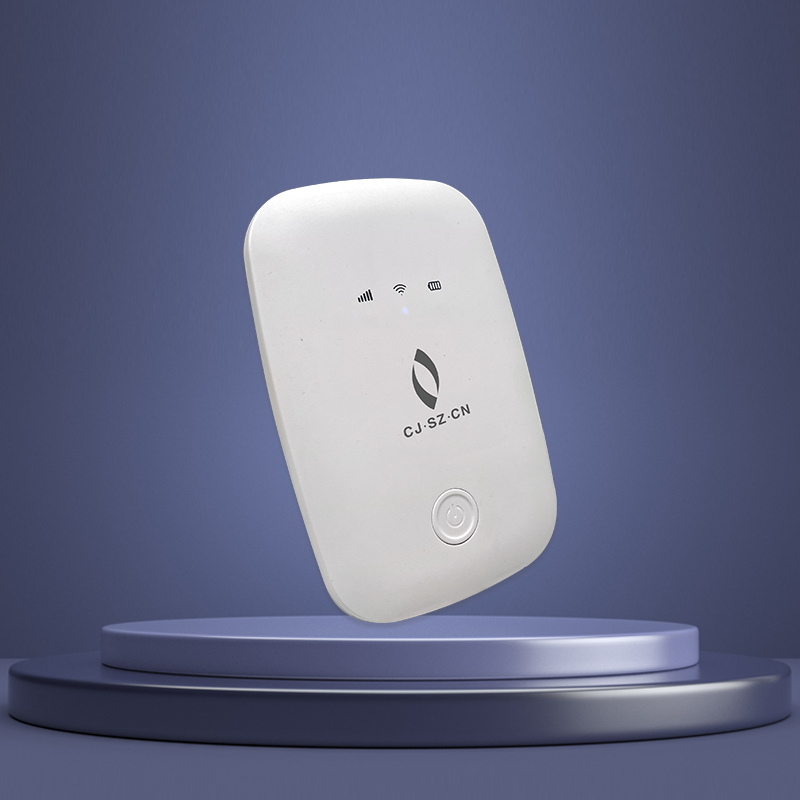

EL896

Chipset:  Qualcomm MDM9X07

4G-LTE: Up to 150 Mbps DL and 50 Mbps UL

3G-UMTS: Up to 42 Mbps DL and 5.76 Mbps UL(DC-HSPA+ mode)

WLAN: 802.11  b/g/n

Bands: FDD/TDD-LTE: B1/2/3/5/7/8/20/38/40/41（Optional)

UMTS: B1/2/3/8 （combination depend on LTE bands）

WLAN: 2.4GHZ

USB Type: Type-c-USB  charge input and debug port

SIM/USIM Card: Type-c SIM card slot

Power button: Long press 3 seconds to power ON or OFF

RESET button: Long press 3 seconds to reset to factory setting

Visual Indicator(LED): LED dio display working status （signal/WiFi/battery cap

Operate System Supported: Win XP/ 7 /8/10, MAC OS, linux, Android （AP mode）

Win XP/ 7 /8 /10（USB modem ）

Capacity :2100mAh min

Frequency: 2400MHz～2483.5MHz

Main antenna: Build-in LTE/UMTS main antenna

DIV antenna: Build-in LTE/UMTS antenna

WLAN antenna: Build-in WiFi antenna

Form Factor: L * W * H: 98 * 66 * 15 MM
